General Description
Automatic capping machine is economical, and easy to operate. This in-line spindle capper handles a wide range of containers and offers a quick and easy changeover that maximizes production flexibility. The tightening discs are gentle which will not damage caps but with an excellent capping performance.
TP-TGXG-200 Bottle Capping Machine is an automatic capping machine to press and screw lids on bottles. It's special designed for automatic packing line. Different to traditional intermittent type capping machine, this machine is a continuous capping type. Compared to intermittent capping, this machine is more efficient, pressing more tightly, and do less harm to the lids. Now it’s widely applied in food, pharmaceutical, chemical industries.
It consists of two parts: capping part and lid feeding part. It works as following: Bottles coming(can joint with auto packing line)→Convey→Separate bottles in same distance→Lift lids→Put on lids→Screw and press lids→Collect bottles.
This machine is for the caps 10mm-150mm regardless the shapes as long as screw caps.
1. This machine has the original design, easy to operate and adjust. The speed can reach 200bpm, freely used separately or combined into production line.
2. When you use semi-automatic spindle capper, the worker only needs to put the caps onto bottles, during their moving forward, the 3 groups or capping wheels will tighten it.
3. You can choose the cap feeder to make it fully automatic (ASP). We have the cap elevator, cap vibrator, declined plate and etc. for your choice.
This model capping machine can cap kinds of different metal & plastic . It is able to integrate to other matched machine in bottling line, fully complete and intelligence control advantage.
Key features
Capping speed up to 160 BPM
Adjustable cap chute for different sizes of
Variable speed control
PLC control system
Rejection system for improperly capped bottles (Optional)
Auto stop and alarm when lack of cap
Stainless steel construction
3 sets of tightening discs
Tools-free adjustment
Optional cap feeding system: Elevator

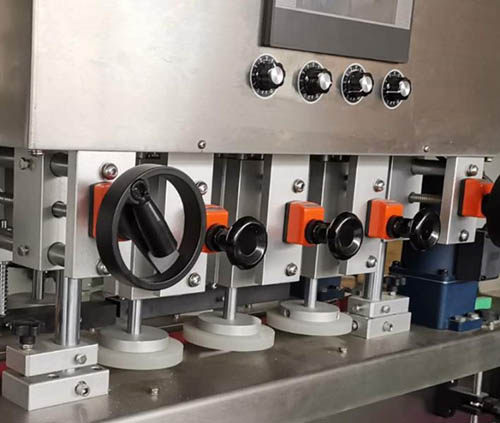

Detailed photos
■ Intelligent
Automatic error lids remover and bottle sensor, assure good capping effect
■ Convenient
Adjustable according to height, diameter, speed, suit more bottles and less frequent to change parts.
■ Efficient
Linear conveyor, automatic cap feeding, max speed100 bpm
■ Easy operate
PLC&touch screen control, easy to operate
Characteristics
■ PLC&touch screen control, easy to operate
■ Easy to operate , Speed of conveying belt is adjustable to synchronous with whole system
■ Stepped lifting device to feed in lids automatically
■ Lid falling part can remove error lids away(by air blowing and weight measuring)
■ All the contact parts with bottle and lids are made of material safety for food
■ The belt to press the lids is inclined, so it can adjust the lid into the correct place and then pressing
■ Machine body is made of SUS 304, meet GMP standard
■ Optronic sensor to remove the bottles which are error capped (Option)
■ Digital display screen to show the size of different bottle, which will be convenient for changing bottle(Option).
■ Sorting and feeding cap automatically
■ Different cap chute for different size of caps
■ Variable speed control
■ Rejection system for improperly capped bottles (Optional)
■ Stainless steel construction
■ 3 sets of tightening discs
■ No-tool adjustment
Industry Type(s)
Cosmetic /personal care
Household chemical
Food & beverage
Nutraceuticals
Pharmaceuticals
Parameters
|
TP-TGXG-200 Bottle Capping Machine |
|||
|
Capacity |
50-120 bottles/min |
Dimension |
2100*900*1800mm |
|
Bottles diameter |
Φ22-120mm (customized according to requirement) |
Bottles height |
60-280mm (customized according to requirement ) |
|
Lid size |
Φ15-120mm |
Net Weight |
350kg |
|
Qualified rate |
≥99% |
Power |
1300W |
|
Matrial |
Stainless steel 304 |
Voltage |
220V/50-60Hz(or customized) |
Standard configuration
|
No. |
Name |
Origin |
Brand |
|
1 |
Invertor |
Taiwan |
Delta |
|
2 |
Touch Screen |
China |
TouchWin |
|
3 |
Optronic Sensor |
Korea |
Autonics |
|
4 |
CPU |
US |
ATMEL |
|
5 |
Interface Chip |
US |
MEX |
|
6 |
Pressing Belt |
Shanghai |
|
|
7 |
Series Motor |
Taiwan |
TALIKE/GPG |
|
8 |
SS 304 Frame |
Shanghai |
BaoSteel |
Structure & drawing
Shippment & packaging
ACCESSORIES in Box
■ Instruction manual
■ Electrical diagram and connecting diagram
■ Safety operation guide
■ A set of wearing parts
■ Maintenance tools
■ Configuration list (origin, model, specs, price)
Service & qualifications
■ TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service
(Warranty service will be honored if the damage is not caused by human or improper operation)
■ Provide accessory parts in favorable price
■ Update configuration and program regularly
■ Respond to any question in 24 hours
FAQ
1. Are you a manufacturer of automatic capping machine?
Shanghai Tops Group Co., Ltd is one of the leading manufacturers of automatic capping machine in China, who has been in packing machine industry for over ten years. We have sold our machines to more than 80 countries all over the world.
We have abilities of designing, manufacturing as well customizing a single machine or whole packing line.
2. What products can automatic capping machine handle?
This in-line spindle capper handles a wide range of containers and offers a quick and easy changeover that maximizes production flexibility. The tightening discs are gentle which will not damage caps but with an excellent capping performance.
Cosmetic /personal care
Household chemical
Food & beverage
Nutraceuticals
Pharmaceuticals
3. How to select a auger filler?
pls advise:
Your bottle material, glass bottle or plastic bottle etc
Bottle shape (it will be better if photo)
Bottle size
Capacity
Power supply
4. What's the price of automatic capping machine?
The price of automatic capping machine based on bottle material, bottle shape, bottle size, capacity, option, customization. Please contact us to get your suitable automatic capping machine solution and offer.
5. Where to find a capping machine for sale near me?
We have agents in Europe, USA, you can buy automatic capping machine from our agents.
6. Delivery time
Machines &molds order usually takes 30 days after pre-payment received. Preforms orders depends on the qty. Please inquiry sales.
7. What is the package?
Machines will be packed by standard wooden case.
8. Payment term
T/T. Generally 30% deposits and 70% T/T before shipping.
