Stainless Steel Mixing Tank for Sale

A stainless-steel mixing tank for various viscous liquid and solid products that require low speed stirring, high dispersion, dissolving and mixing.

Do you want to learn more about the mixing tank's quality? Please continue reading.

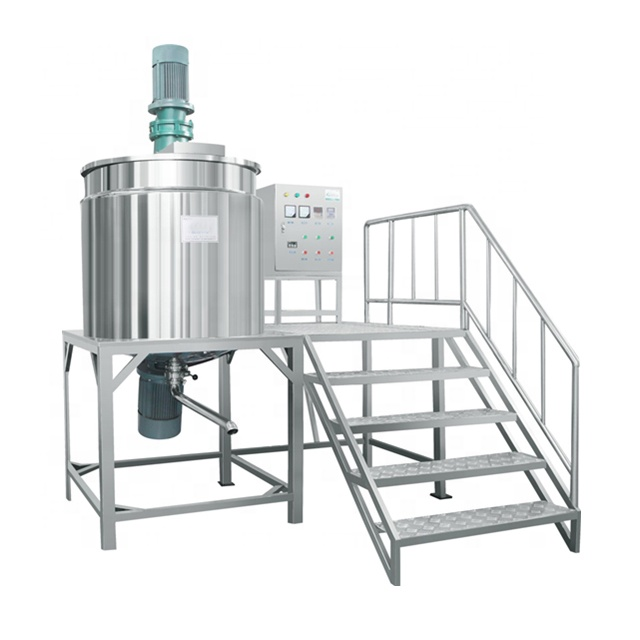

Stainless Steel Mixing Tank for Sale (1)

Shanghai Tops Group manufactures a stainless-steel mixing tank with many models to choose from and, of course, you can customize it to your specifications.

Function:

The motor acts as a drive part to propel the triangle wheel to rotate. The ingredients are fully mixed, blended, and stirred evenly using the adjustable speed stirring of the paddle in the pot and the homogenizer at the bottom. Simple operation, low noise, and long-term stability

Application:

It is widely used in many industries, such as pharmaceutical, food, daily care, cosmetic, chemical industry, etc.

● Pharmaceutical industry: syrup, ointment, oral liquid...
● food industry: soap, chocolate, jelly, beverage...
● daily care industry: shampoo, shower gel, facial cleanser...
● Cosmetics industry: creams, liquid eye shadow, makeup remover...
● Chemical industry: oil paint, paint, glue...

The Parameter: For your choice

Model

Effective

volume(L)

Dimension of tank

(D*H)(mm)

Total

Height(mm)

Motor

power(kw)

Agitator speed(r/min)

TPLM-500

500

Φ800x900

1700

0.55

63

TPLM-1000

1000

Φ1000x1200

2100

0.75

TPLM-2000

2000

Φ1200x1500

2500

1.5

TPLM-3000

3000

Φ1600x1500

2600

2.2

TPLM-4000

4000

Φ1600x1850

2900

2.2

TPLM-5000

5000

Φ1800x2000

3150

3

TPLM-6000

6000

Φ1800x2400

3600

3

TPLM-8000

8000

Φ2000x2400

3700

4

TPLM-10000

10000

Φ2100x3000

4300

5.5

We can customize the equipment according to customer requirements.

Tank Data sheet

Material 304 or 316 Stainless steels
Insulation Single layer or with insulation
Top Head type

Dish top, Open lid top, Flat top

Bottom type Dish bottom, Conical bottom, Flat bottom
Agitator type impeller, Anchor, Turbine, High shear, magnetic mixer, Anchor mixer with scraper
magnetic mixer, Anchor mixer with scraper
Inside Finish Mirror polished Ra<0.4um
Outside Finish 2B or Satin Finish

Details:

Stainless Steel Mixing Tank for Sale (3)

Lid

Stainless steel material, half-open lid.

Pipe: GMP hygiene standards SUS316L are used for all contact material parts, as well as sanitation grade accessories and valves.

Stainless Steel Mixing Tank for Sale (4)

Electric Control System

(Can be customized to include a PLC and a touch screen)

Stainless Steel Mixing Tank for Sale (5)

Scraper Blade and Stirrer Paddle

Full polishing, 304 stainless steel, wear resistance, and durability.

Homogenizer

Homogenizer for the Bottom (can be customized to upper homogenizer)

SUS316L is the material.

Motor power is determined by capacity.

DELTA inverter, speed range: 0-3600rpm

Before assembly, the rotor and stator are finished with wire-cutting machining and polished.

Stainless Steel Mixing Tank for Sale (2)

Please click the videos: https://youtu.be/wu1D2iU9sUU

                                       https://youtu.be/jo46S7xbr2g

For more information you can check https://www.topspacking.com/liquid-mixer-product/
