Description:
Model No. TP-AX1
Model No. TP- AX2
Model No.TP- AXM2
Model No. TP- AX4
Model No. TP-AXS4
Usage:
The Linear Type Weigher offers advantages such as high speed, high accuracy, long-term stable performance, favorable pricing, and excellent after-sales service. It is suitable for weighing sliced, rolled, or regularly shaped products, including sugar, salt, seeds, rice, sesame, glutamate, coffee beans, seasoning powders, and more.
Two.Features
●The new highly integrated modular control system.
●Automatic amplitude adjustment function for easier debugging.
●Capable of weighing a variety of different materials simultaneously to achieve mixed-material packaging.
●Parameters can be directly modified during operation based on production needs, making it easy to operate.
●A 2-year guarantee, offering the longest quality assurance period in the industry.
●Features a stepless vibration feeding system, ensuring more even material distribution and a larger weighing range.
Three. Specification
|
Model |
TP-AX1 |
TP-AX2 |
TP-AXM2 |
TP-AX4 |
TP-AXS4 |
|
Identify Code |
X1-2-1 |
X2-2-1 |
XM2-2-1 |
X4-2-1 |
XS4-2-1 |
|
Weighing Range |
20-1000g |
50-3000g |
1000-12000g |
50-2000g |
5-300g |
|
Max Speed |
10-15P/M |
30P/M |
25P/M |
55P/M |
70P/M |
|
Hopper Volume |
4.5L |
4.5L |
15L |
3L |
0.5L |
|
Storage Hopper Volume(L) |
20 |
20 |
20 |
20 |
20 |
|
Max Mixing Products |
1 |
2 |
2 |
4 |
4 |
|
Power |
700W |
1200W |
1200W |
1200W |
1200W |
|
Power Requirement |
220V/50/60Hz/5A |
220V/50/60Hz/6 A |
|||
|
Packing Dimension (mm) |
860(L)*570(W) *920(H) |
920(L)*800(W)*8 90(H) |
1215(L)*1160( W)*1020(H) |
1080(L)*1030(W)*8 20(H) |
820(L)*800(W)*7 00(H) |
Four. Details
1. SS304/316 stainless steel for superior sanitation;
2. Round corner design with no burrs for safer operation and easier cleaning;
|
Order |
Item |
Brand |
Model |
|
1 |
Touch screen |
Shanghai Kinco |
MT4404T-JW |
|
2 |
Sensor |
Taiwan Fotek |
CDR-30X |
|
3 |
Power switch |
Zhejiang Hengfu |
9V1.5A/24V1.5A |
|
4 |
Mainboard |
self made |
|
|
5 |
Module board |
self made |
|
|
6 |
Load cell |
Germany HBM |
SP5C3/8KG |
|
7 |
Hopper bearing sleeve |
Germany IGUS |
JW-TY-19-C |
|
8 |
Circuit breaker |
Zhejiang Delixi |
CDB6S 1P C type 10A/16A/25A |
Six. Packing System
3. Parts in contact with materials (stopper, discharge funnel, vibrator pan, weighing hopper, etc.)
Five. Configuration

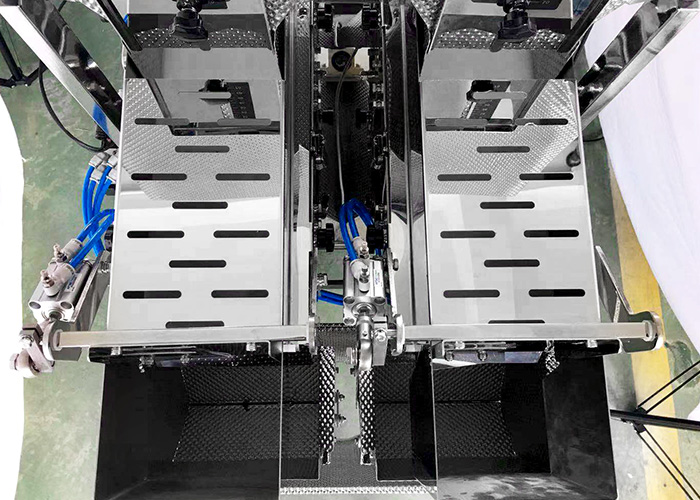

4. The discharge end of the vibration pan is equipped with a pneumatic gate for precise small-flow feeding;
5. 17 language options and an easy-to-use HMI. Specifications can be freely adjusted according to production requirements;
6. The material-contacting parts use decorative patterned plates to reduce the contact area with sticky materials.
Pouch Packing System
Sachet Packing System
